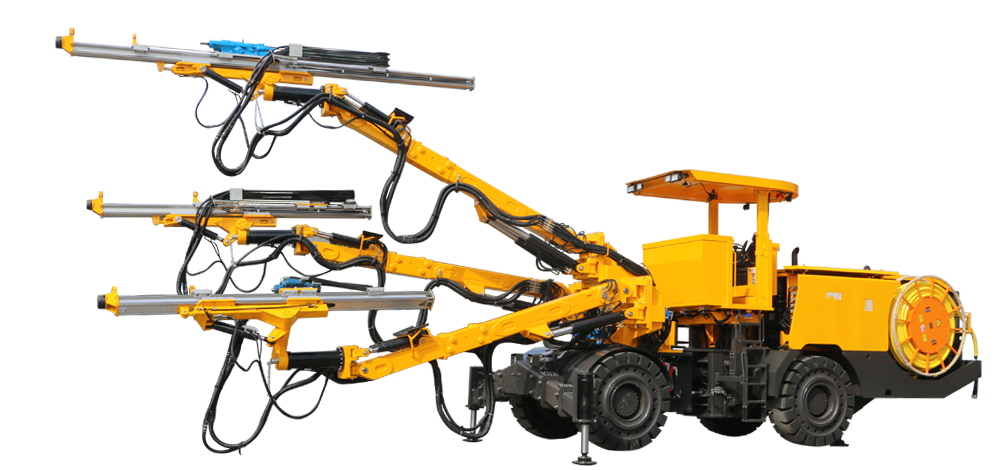

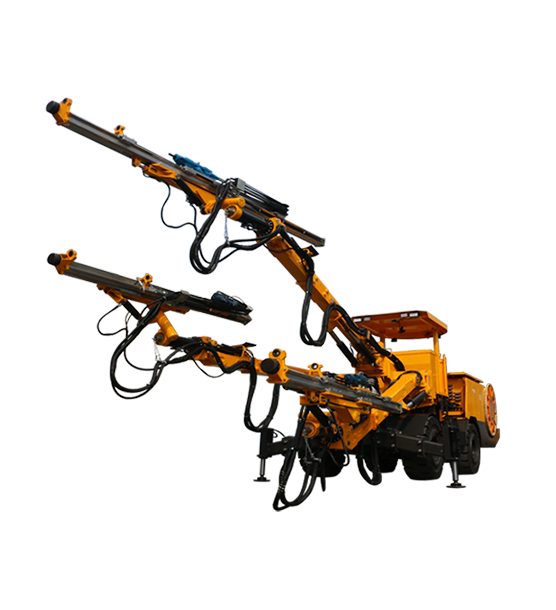

DW1203輪式三臂鑿巖臺車
分享
DW1203輪式三臂鑿巖臺車是用于礦山、水電、鐵路、公路等領域的巷道和隧道掘進所需的爆破孔和錨桿孔作業，采用全液壓驅動，鑿巖速度可達0.8-2米/分，采用發動機提供行走動力，該機結構緊湊、重心低、機動靈活、工作穩定等特點。使用不僅提升安全保障，還能降低勞動者的工作強度及提高工作效率
13800000000
特點介紹
| 參數Parameter | DW1203 |
|---|---|
| 整機尺寸（長*寬*高）/Overall dimensions (L * W * H) | 16500*2900*4400/3700mm |
| 作業范圍/ Operating range (W * H) | 13245*9850mm |
| 最小轉彎半徑/ Minimum turning radius | ≤11400mm |
| 最大覆蓋面積/ Maximum cover area | 120㎡ |
| 整機重量/Overall weight | 48400kg |
| 鑿巖機/ Rock drill | |
| 數量/ Qty | 2 × 1 |
| 系統壓力 × 數量/ System pressure × Qty | 210Bar × 2/ 245Bar × 1 |
| 沖擊功率 × 數量/ Impulse power × Qty | 14kW × 2/ 18kW × 1 |
| 沖擊液壓油壓力 × 數量/ Impulse hydraulic oil pressure × Qty | 160Bar × 2/ 230Bar × 1 |
| 沖擊頻率/ Impulse frequency | 60Hz |
| 每次沖擊功 × 數量/ Each impact power × Qty | 190J × 2/ 300J × 1 |
| 旋轉進油壓力/ Rotary inlet pressure | 210Bar |
| 旋轉扭矩 × 數量1/ Rotary torque × Qty | 550/720 N.m × 2/ 1000N.m × 1 |
| 回轉速度 × 數量1/ Turning speed × Qty | 400/310 r/min × 2/ 0~215 r/min × 1 |
| 沖洗水壓 × 數量/ Flush pressure × Qty | 10~15 Bar × 2/ 25Bar × 1 |
| 重量 × 數量/ Weight × Qty | 114Kg × 2/ 170Kg × 1 |
| 鉆臂/Drilling arm | |
| 數量/ Qty | 3 |
| 控制方式/ Control method | 平動定位式/ Translational positioning |
| 單臂覆蓋面積/ Single arm covered area | 120m2 |
| 覆蓋面積/ Covered area | 120m2 |
| 伸縮行程/ Extension travel | 1500mm |
| 升降及擺動角度/ Lift and swing angle | Lifting and lowering (+55°, -30°) Swing (left 45°, right 45°) |
| 推進梁/ Pusher bean | |
| 數量/ Qty | 2 × 1 |
| 推進類型/ Propulsion type | 液壓油缸 + 鋼絲繩/ Hydralic cylinder + wire rope |
| 推進梁總長 × 數量/ Total length of the pusher beam × Qty | 4624mm × 2/ 6562mm × 1 |
| 推進行程 × 數量/ Advance stroke × Qty | 3260mm × 2/ 4580mm × 1 |
| 最大推進力/ Maximum propulsive force | 15kN |
| 鉆桿長度 × 數量/ Drill pipe length × Qty | 3700mm × 2/ 4915mm × 1 |
| 鉆孔直徑/ Drilling hole diameter | 43~89mm |
| 一次推進鉆孔深度 × 數量/ One propulsive borehole depth × Qty | 3295mm × 2/ 4510mm ×1 |
| 翻轉角度/ Turning angle | ± 180° |
| 擺動角度/ Swing angle | +90°, -2° |
| 底盤/Chassis | |
| 行走速度/Walking speed | 12 Km/h |
| 爬坡能力/ Climbing ability | 24% |
| 離地間隙/ Ground clearance | ≥ 420mm |
| 前后輪軸距/ Front and rear wheelbase | 3750mm |
| 前/后輪胎型號×數量/ Front and rear wheels type × Qty | 23.5-25 實心/ solid × 4 |
| 發動機功率/ Engine power | 199kW |
| 發動機廢氣排放標準 | 國Ⅲ |
| 傳動系統/ Transmission system | 四輪液力驅動/ Four-wheel hydraulic drive |
| 制動系統/ Brake system | 濕式雙回路緊急制動，斷氣駐車制動/ Wet double circuit emergency brake, dead parking brake |
| 轉向系統/ Steering system | 鉸接轉向/ Shovel steering |
| 燃油箱容積/ Fuel tank volume | 260L |
| 鉆孔液壓系統/ Drilling hydraulic system | |
| 液壓控制方式/ Hydraulic control mode | 電控多路閥控制/ Electronically controlled multiway valve control |
| 電機功率 × 數量/ Engine power × Qty | 55kW × 3 |
| 主液壓油泵額定壓力/ Main hydraulic pump rated pressure | 315Bar |
| 主液壓油泵排量/ Main hydraulic pump displacement | 100 × 1.75 × 2 L/min |
| 副液壓油泵額定壓力/ Auxiliary hydraulic pump rated pressure | 310Bar |
| 副液壓油泵排量/ Auxiliary hydraulic pump displacement | 45 × 3 L/min |
| 液壓油箱容積/ Hydraulic tank volume | 900L |
| 壓力油回油精度/ Pressure oil return accuracy | 80/ 10μm |
| 潤滑系統/ Lubration mechanism | |
| 排量/ 壓力/ Displacement/ Pressure | 1.38m3/min / 8Bar |
| 耗氣量/ Das consumption | 1050L/min |
| 耗油量/ Oil consumption | 1.5cm3/min |
| 水系統/ Water system | |
| 增壓水泵功率/ Booster pump power | 11kW |
| 額定排量/ Rated displacement | 15m3/h |
| 揚程/ Spray head | 145~202m |
| 電氣系統/ Electrical system | |
| 總輸入功率/ Total input power | 183.5kW |
| 電壓/頻率 / Voltage/ Prequency | 380V/ 50Hz |
| 電纜長度及卷盤容量/ Cable length and coil capacity | 80m |
| 啟動方式/ Starting mode | Star/ triangle |
| 安全保護系統功能/ Satety protection system | 漏電保護、過載保護、短路保護/ Leakage protection, overload protection, short circuit protection |
| 電纜卷盤/ Cable coil | |
| 自動電纜卷盤電機功率/ Automatic cable coil motor power | 液壓馬達驅動/ Hydrawlic motor drive |
| 電纜長度/ Cable length | 80m |
| 鉆機控制系統/ Control system | |
| 鉆機系統控制類型/ Control system model | 遙控 + 本地控制/ Remote control + Local control |
| 控制面板類型/ Control panel type | 手柄式/ Handle |
| 電子系統供電類型/ Electronic system power supply type | 24VDC |
| 鉆臂控制類型/ Drill arm control mode | 電控多路閥控制/ Electronically controlled multiway valve control |
